rswetgSPECTRA 8x 1-8x24i

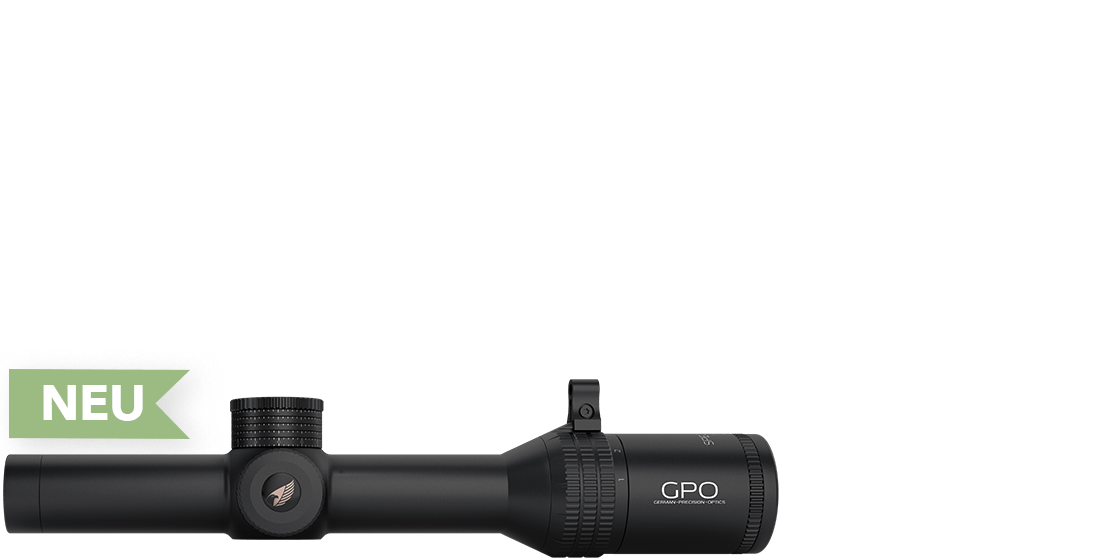

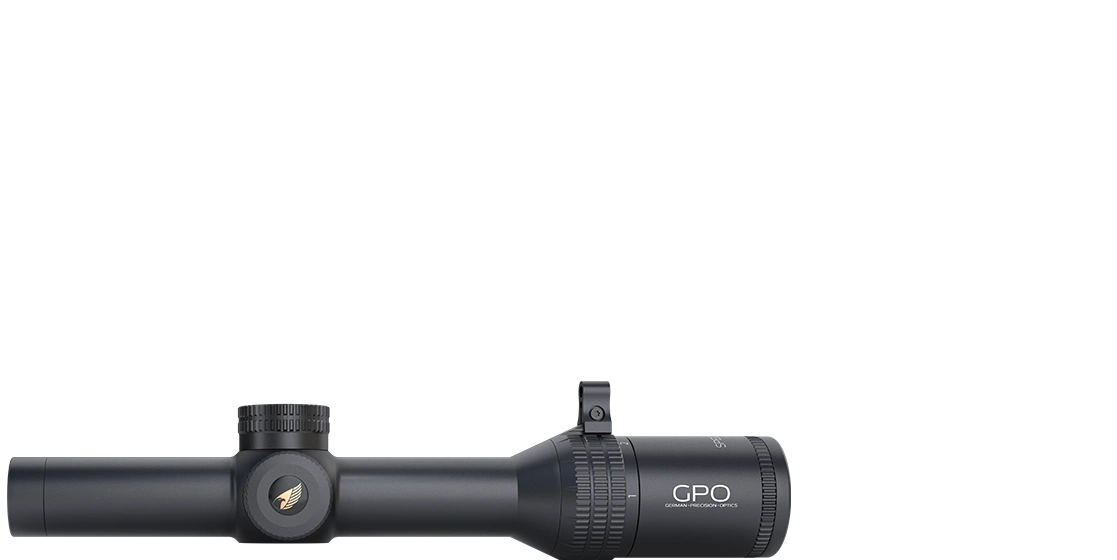

SPECTRA 8x 1-8x24i
The new SPECTRA 8x 1-8x24i G4i Fiber is the successor to the current 1-8x24i. It is also based on the optical construction kit of our very successful 1.6-13x44i and scores with unique optical performance in terms of image quality. In addition, this new model fits our optionally available GBT ballistic turret. The field of view at 1x zoom is 41m and impresses with its clarity and edge-to-edge sharpness, so that shooting with both eyes open is no problem.
rswetgSPECTRA 8x 1-8x24i
Technical Specifications
| Magnification | . | 1x – 8x |
| Field of view (FOV) m at 100m | . | 41 – 5,2 |
| Objective diameter (mm) | Effective diameter | 24 |
| Exit pupil diameter (mm) | Measurement of the pupilary ocular beam | 8,5 – 3 |
| Eye Relief (inches) | From the last optical surface | 3,74 |
| Eye Relief (mm) | From the last optical surface | 95 |
| cm travel value per click at 100m | 1 Click = x/100m | 1 |
| Elevation range total (cm at 100m) | 100 | 320 |
| Windage range total (cm at 100) | 100m | 320 |
| Parallax compensation | Parallax free at x distance | 100 m |
| Transmission Daylight | ISO 14490-5:2005 | 90% |
| Height (inches) | Without covers | 1,8 |
| Height (mm) | Without covers | 45,7 |
| Width (inches) | Fully extended | 2,73 |
| Width (mm) | Fully extended | 69,5 |
| Length (inches) | At outside diameter | 11,18 |
| Length (mm) | At outside diameter | 284 |
| Tube diamter (mm) | Width of main tube | 24 |
| Weight (ounces) | Without covers | 18,97 |
| Weight (grams) | Without covers | 538 |
| Mechanical outer diameter (objective mm) | Objective end of scope | 30 |
| Mechanical outer diameter (ocular mm) | Ocular end of scope | 45,8 |
| Reticle Option | . | G4i Fiber |
| Accessories included with the purchase | . | instruction manual, cleaning cloth, bikini scope cover, battery CR2032, throw lever, ballistic turret (optional, not included!) |
